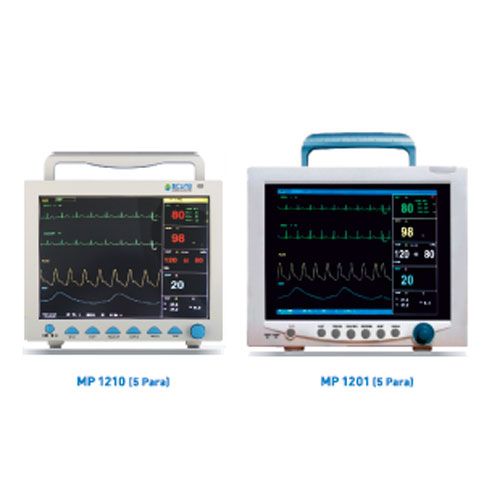

MP 1210 Multipara Monitor

Product Description

• Alarm: Audible and Visual alarm, alarm events review
• High Resolution with screen size: 12.1″ colour TFT display
• Touch Screen (Optional Only for MP 1201]
• Light weight, compact and portable
• Detachable rechargeable lithium battery
• ECG waveforms of 7 lead display on the same screen
• 72-hours graphic and tabular trends of all the parameters
• 72 alarm events of all parameters recall
• 32 seconds full-disclosure waveform review
• 500 NIBP measurement data can be stored and recall
• Data and waveforms color can be stored and recall
• Arrhythmia analysis and S-T Segment analysis and its detection
• Suitable for Adult, Paediatric and Neonatal Patients
• Battery Backup: 2 hours

• Optional Nellcor SpO2, EtCO2, IBP, Printer, Central Monitoring software & cable (LAN networking or wireless)

Technical Specifications

Respiration

• Method:RA-LL Impedance
• Adult: 0 ~ 120 breathe / min
• Paediatric/ Neonatal: 0 ~ 150 breathe / min
• Apnea Alarm: 10 ~ 40 s
• Pulse Rate (PR)
• Range: 30 ~ 250 bpm Accuracy: ±3 bpm

Temperature

• Range: 0 ~ 50°C
• Accuracy: ±0.1°C
• Sp02
• Measurement Range:0 ~ 100%
• Accuracy 70 ~ 100%, ±2% & 0 ~ 69%,Unspecified

NIBP

• Method: Oscillometric
• Modes: Manual / Auto / Continuous
• Auto Measure time: Adjustable
• Measurement Range: 10 ~ 270 mmHg

ECG

• Lead Mode: 3 lead or 5 lead
• Lead Selection: I, II, III, avR, avL, avF and V
• Heart Rate Range:
• Adult: 35 ~ 300 bpm
• Paediatric/ Neonatal: 15 ~ 300 bpm

ECG Waveform: 2 Channels

• Accuracy: ±1 bpm or ±1%, whichever is greater
• S-T segment detection
• Measurement range: 0.2mV ~ 2.0mV
