Medical Pumps

Product Description

• Infusion Rate : 1ml/h ~ 1,200ml/h
• Flow Rate Accuracy : Within ±5% [after correct calibration]
• Mechanical Precision : Within ±2%
• Purge Rate : 100ml/h ~ 1,200ml/h [100ml/h step]
• KVO Rate : 1ml/h ~ 5ml/h [1ml/h step]
• Infusion Volume : 1ml ~ 9999ml
• Total Infusion Volume : 0.1ml ~ 9999.9ml

Technical Description

• Rechargeable lithium battery
• Work mode: ml/h and drop/min and these two modes can switch freely
• Audible and visual alarm for occlusion, low battery, infusion finish, door open, wrong setting AC power has been pulled out, purge etc
• HD LCD Display, high capacity words, friendly user interface, dynamically display working status
• Compatible with any brand of infusion sets after correct calibration
• Preset solution volume to greatly reduce the workload of nurses
• Purge function
• KVO [keep-vein-open] automatically opens as injection is completed
• 4 hours battery backup time for normal function
• Drop Sensor

Occlusion :

• High: 800mmHg ±200mmHg [106.7kPa ±26.7 kPa]
• Medium : 500mmHg ±100mmHg [66.7kPa ±13.3 kPa]
• Low : 300mmHg ±100mmHg [40.7kPa ±13.3kPa]
• Alarms : Tube is blocked, There are bubbles, Close the door, Infusion finish, Wrong setting, Low battery,
• AC power has pulled out, Purge, Data recovering, Data processing, BOLUS running, Forget to operate, etc
• Power Source : 100 ~ 240Vac, 50/60Hz; Internal rechargeable Li battery capacity ≥1,600mAh,
• voltage=11.1V, 4 hours backup time at the rate of 25ml/h [appointed medium rate in GB 9706.27-2005]
• for the new battery charged for 12 hours
• Bubble Detector : Ultrasonic wave detector;
• Detection Sensitivity ≥ 25μL
• Weight : 1.8kg
• OPTIONAL : Drug Library (store 2000pcs infusion records), Wall mounting stand

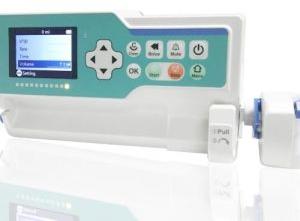

Product Description

• Fast start function against start delay
• Long run time battery with 12 Hours battery backup
• Intuitive Keypad with Keypad locking system
• With parameters enlarge function
• DPS (Dynamic Pressure show)

Technical Features

• Display: 2.8” Colour TFT

Power Supply

• AC: 110 V ~ 240 V, 50/60 Hz
• DC: 12V
• Battery Life: Approx. 12 Hours (at 5ml /h flow rate with new fully charged battery)
• Compatible with Syringe Size: 5ml, 10ml, 20ml, 30ml, 50 or 60ml
• Flow Rate: 0.1 ~ 1500ml
• Flow Rate Accuracy: ±2%
• Dose rate Units: More than 15 types
• Purge and Titration Support

Bolus Setting:

• Manual Bolus
• Programmable Bolus

• KVO Rate: 0.1 ~ 5.0ml/h
• VTBI: 0 ~ 9999ml
• Three Infusion modes: Rate mode, Time Volume mode, Dosage Weight mode
• Micro Mode and Stand By mode with 0 ~ 23 hour 59 mins adjustable
• Brightness and Alarm are adjustable
• Alarms: VTBI near end, VTBI infused, Pressure high, Battery nearly empty, Battery empty, No Power Supply, Remainder alarm, and KVO Finished.
• Three Level of Occlusion : High, Medium and Low
• Records more than 2000 entries
• Supported with more than 60 Drug Library
• Mini USB interface in order to transfer data from Syringe Pump into PC
• With Automatic Calibration and automatic anti – bolus system
• Classification: Class I, CF
• Water proof Standard: IP 24
• Machine Weight: 1.7Kg
• WiFi connection (Optional)
